iSensor-SPI-Buffer script module (loaded from SD card or provided via USB CLI) More...

#include "script.h"
#include "reg.h"
#include <stdio.h>
#include "usb.h"
#include "main.h"
#include "sd_card.h"

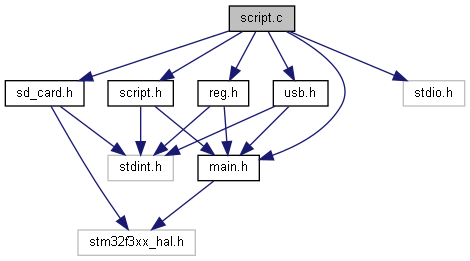

Include dependency graph for script.c:

Functions
static uint32_t	ParseCommandArgs (const uint8_t commandBuf, uint32_t args)
	Parse space delimited arguments out from a command. More...

static void	ReadHandler (script scr, uint8_t outBuf, bool isUSB)
	Read command handler. More...

static void	ReadBufHandler (bool isUSB)
	Handler for ReadBuf command. More...

static void	RegAliasReadHandler (uint8_t *outBuf, bool isUSB, uint16_t regIndex)
	Read a register without changing page, and print to CLI. More...

static void	WriteHandler (script *scr)
	Write command handler. More...

static void	StreamCmdHandler (script *scr, bool isUSB)
	Handler for stream start/stop command. More...

static void	AboutHandler (uint8_t *outBuf, bool isUSB)
	Print about message to CLI. More...

static void	UptimeHandler (uint8_t *outBuf, bool isUSB)
	Print system uptime CLI. More...

static void	FactoryResetHandler ()
	Executes a factory reset + flash update. More...

static void	UShortToHex (uint8_t *outBuf, uint16_t val)
	Convert a 16 bit value to the corresponding hex string (4 chars) More...

static uint32_t	HexToUInt (const uint8_t *commandBuf)
	Convert a hex string to a 32 bit uint. More...

static uint32_t	StringEquals (const uint8_t string0, const uint8_t string1, uint32_t count)
	Check equality between two strings. More...

void	Script_Check_Stream ()
	Check the stream status. More...

void	Script_Parse_Element (const uint8_t commandBuf, script scr)
	Parse a command string into a script element. More...

void	Script_Run_Element (script scr, uint8_t outBuf, bool isUSB)
	Executes a script element. More...

Variables
static uint8_t	StreamBuf_A [STREAM_BUF_SIZE]

static uint8_t	StreamBuf_B [STREAM_BUF_SIZE]

static bool	BufA

static uint32_t	cmdIndex

static uint32_t	goodArg

static const uint8_t	ReadCmd [] = "read "

static const uint8_t	WriteCmd [] = "write "

static const uint8_t	HelpCmd [] = "help"

static const uint8_t	FactoryResetCmd [] = "freset"

static const uint8_t	ReadBufCmd [] = "readbuf"

static const uint8_t	EndloopCmd [] = "endloop"

static const uint8_t	StatusCmd [] = "status"

static const uint8_t	CntCmd [] = "cnt"

static const uint8_t	AboutCmd [] = "about"

static const uint8_t	UptimeCmd [] = "uptime"

static const uint8_t	StreamCmd [] = "stream "

static const uint8_t	DelimCmd [] = "delim "

static const uint8_t	EchoCmd [] = "echo "

static const uint8_t	SleepCmd [] = "sleep "

static const uint8_t	LoopCmd [] = "loop "

static const uint8_t	CommandCmd [] = "cmd "

static const uint8_t	InvalidCmdStr [] = "Error: Invalid command! Type help for list of valid commands\r\n"

static const uint8_t	NotAllowedStr [] = "Error: Command not allowed from USB! Type help for list of valid commands\r\n"

static const uint8_t	InvalidArgStr [] = "Error: Invalid argument!\r\n"

static const uint8_t	UnknownErrorStr [] = "An unknown error has occurred!\r\n"

static const uint8_t	HelpStr []

Detailed Description

iSensor-SPI-Buffer script module (loaded from SD card or provided via USB CLI)

Date: 7/23/2020

Author: A. Nolan (alex..nosp@m.nola.nosp@m.n@ana.nosp@m.log..nosp@m.com)

Function Documentation

◆ AboutHandler()

static void AboutHandler	(	uint8_t *	outBuf,
		bool	isUSB
	)

static

Print about message to CLI.

Returns: void

Parameters

outBuf	Buffer to write data to
isUSB	Flag indicating if output data should be sent to USB or SD card

The function prints firmware version and date info, as well as a link to detailed docs on GitHub

◆ FactoryResetHandler()

static void FactoryResetHandler ( )

static

Executes a factory reset + flash update.

Returns: void

This function is called when the USB CLI executes a freset command.

◆ HexToUInt()

static uint32_t HexToUInt ( const uint8_t * commandBuf )

static

Convert a hex string to a 32 bit uint.

Returns: void

The input string must be stored in CurrentCommand, with cmdIndex set to point at the first value in the string.

Here is the caller graph for this function:

◆ ParseCommandArgs()

static uint32_t ParseCommandArgs	(	const uint8_t *	commandBuf,
		uint32_t *	args
	)

static

Parse space delimited arguments out from a command.

Parameters

commandBuf	Pointer to command string
args	Pointer to an array which receives the command arguments

Returns: void

Arguments must be separated by a space. Each argument (up to 3) are placed into the args array. The total number of arguments in the current command is placed in numArgs. All arguments must be hex strings.

Here is the call graph for this function:

◆ ReadBufHandler()

static void ReadBufHandler ( bool isUSB )

static

Handler for ReadBuf command.

Returns: void

Parameters

isUSB Flag indicating if output data should be sent to USB or SD card

This function uses a ping-pong architecture for the buffer transmit data. This avoids potential data corruption issues (USB transmit is non-blocking)

◆ ReadHandler()

static void ReadHandler	(	script *	scr,
		uint8_t *	outBuf,
		bool	isUSB
	)

static

Read command handler.

Returns: void

Parameters

scr	Script element being executed. Contains read arguments
outBuf	Buffer to write data to. Must be at least STREAM_BUF_SIZE bytes
isUSB	Flag indicating if output data should be sent to USB or SD card

This function handles all read commands from SD scripts or the USB CLI. Output data is filled to STREAM_BUF_SIZE, then transmitted. The arguments provided in scr are assumed to be valid prior to this function being called, so no additional input validation is performed.

Here is the call graph for this function:

◆ RegAliasReadHandler()

static void RegAliasReadHandler	(	uint8_t *	outBuf,
		bool	isUSB,
		uint16_t	regIndex
	)

static

Read a register without changing page, and print to CLI.

Returns: void

Parameters

outBuf	Buffer to write data to. Must be at least 6 bytes
isUSB	Flag indicating if output data should be sent to USB or SD card
regIndex	the index of the register to access (in g_regs)

The function is used to implement register read alias commands.

◆ Script_Check_Stream()

void Script_Check_Stream ( )

Check the stream status.

This function checks if a watermark interrupt is asserted, based on a minimum watermark level of

If a watermark is asserted, and a stream is running, then ReadBufHandler() is called, with isUSB set to match the stream source. SD card streams have priority over USB streams, and will cancel a running USB stream.

◆ Script_Parse_Element()

void Script_Parse_Element	(	const uint8_t *	commandBuf,
		script *	scr
	)

Parse a command string into a script element.

Returns: void

Parameters

commandBuf	Script command string (from CLI or SD card)
scr	Script element to populate

This function parses the script command type from the available list of script commands, by comparison to a pre-defined string literal. Then, the arguments for each particular command type are parsed and validated.

Here is the call graph for this function:

◆ Script_Run_Element()

void Script_Run_Element	(	script *	scr,
		uint8_t *	outBuf,
		bool	isUSB
	)

Executes a script element.

Returns: void

Parameters

scr	The script element to execute
outBuf	Output buffer to write script result to
isUSB	Flag indicating if output data should be transmitted to USB CLI or SD card

This function handles all non-control based script elements. It also performs input validation on the script object, and will print an error message for an invalid command or invalid arguments. If the command and arguments are good, this function calls the lower level handler corresponding to the script item. Currently is just a switch statement, could do some neat stuff with a function pointer table in the future.

◆ StreamCmdHandler()

static void StreamCmdHandler	(	script *	scr,
		bool	isUSB
	)

static

Handler for stream start/stop command.

Returns: void

Parameters

scr	Script element being executed
isUSB	flag indicating if command came from SD script or USB CLI

This function manages stream priorities. If a stream is already running for the SD card script, a USB stream will not be started. The system currently only supports streaming data to one destination at a time.

◆ StringEquals()

static uint32_t StringEquals	(	const uint8_t *	string0,
		const uint8_t *	string1,
		uint32_t	count
	)

static

Check equality between two strings.

Parameters

string0	First string to compare
string1	Second string to compare
count	Number of chars to compare (from start)

Returns: 1 for equal strings, 0 for not equal

Here is the caller graph for this function:

◆ UptimeHandler()

static void UptimeHandler	(	uint8_t *	outBuf,
		bool	isUSB
	)

static

Print system uptime CLI.

Returns: void

Parameters

outBuf	Buffer to write data to
isUSB	Flag indicating if output data should be sent to USB or SD card

The system uptime is based on the HAL systick counter

Here is the call graph for this function:

◆ UShortToHex()

static void UShortToHex	(	uint8_t *	outBuf,
		uint16_t	val
	)

static

Convert a 16 bit value to the corresponding hex string (4 chars)

Parameters

outBuf	Buffer to place the string result in
val	The 16 bit value to convert to a string

Returns: void

Here is the caller graph for this function:

◆ WriteHandler()

static void WriteHandler ( script * scr )

static

Write command handler.

Returns: void

Parameters

scr	pointer to script element containing write arguments

The write address is passed in args[0]. The address is masked to only 7 bits (address space of a page). The write value is passed in args[1]. The write value is masked to 8 bits (byte-wise writes).

Here is the call graph for this function:

Variable Documentation

◆ AboutCmd

const uint8_t AboutCmd[] = "about"

static

String literal for about command.

◆ BufA

bool BufA

static

Track which buffer is in use

◆ cmdIndex

uint32_t cmdIndex

static

Current index within command buffer

◆ CntCmd

const uint8_t CntCmd[] = "cnt"

static

String literal for cnt command.

◆ CommandCmd

const uint8_t CommandCmd[] = "cmd "

static

String literal for command run command. Must be followed by a space

◆ DelimCmd

const uint8_t DelimCmd[] = "delim "

static

String literal for delim set command. Must be followed by a space

◆ EchoCmd

const uint8_t EchoCmd[] = "echo "

static

String literal for echo enable/disable command. Must be followed by a space

◆ EndloopCmd

const uint8_t EndloopCmd[] = "endloop"

static

String literal for endloop command.

◆ FactoryResetCmd

const uint8_t FactoryResetCmd[] = "freset"

static

String literal for factory reset command

◆ goodArg

uint32_t goodArg

static

Flag to track if current command arguments are valid

◆ HelpCmd

const uint8_t HelpCmd[] = "help"

static

String literal for help command

◆ HelpStr

const uint8_t HelpStr[]

static

Print string for help command

◆ InvalidArgStr

const uint8_t InvalidArgStr[] = "Error: Invalid argument!\r\n"

static

Print string for invalid argument

◆ InvalidCmdStr

const uint8_t InvalidCmdStr[] = "Error: Invalid command! Type help for list of valid commands\r\n"

static

Print string for invalid command

◆ LoopCmd

const uint8_t LoopCmd[] = "loop "

static

String literal for loop command. Must be followed by a space

◆ NotAllowedStr

const uint8_t NotAllowedStr[] = "Error: Command not allowed from USB! Type help for list of valid commands\r\n"

static

Print string for not allowed command

◆ ReadBufCmd

const uint8_t ReadBufCmd[] = "readbuf"

static

String literal for read buffer command

◆ ReadCmd

const uint8_t ReadCmd[] = "read "

static

String literal for read command. Must be followed by a space

◆ SleepCmd

const uint8_t SleepCmd[] = "sleep "

static

String literal for sleep command. Must be followed by a space

◆ StatusCmd

const uint8_t StatusCmd[] = "status"

static

String literal for status command.

◆ StreamBuf_A

uint8_t StreamBuf_A[STREAM_BUF_SIZE]

static

Buffer A for stream data (USB or SD card) ping/pong

◆ StreamBuf_B

uint8_t StreamBuf_B[STREAM_BUF_SIZE]

static

Buffer B for stream data (USB or SD card) ping/pong

◆ StreamCmd

const uint8_t StreamCmd[] = "stream "

static

String literal for stream command. Must be followed by a space

◆ UnknownErrorStr

const uint8_t UnknownErrorStr[] = "An unknown error has occurred!\r\n"

static

Print string for unexpected processing

◆ UptimeCmd

const uint8_t UptimeCmd[] = "uptime"

static

String literal for uptime command.

◆ WriteCmd

const uint8_t WriteCmd[] = "write "

static

String literal for write command. Must be followed by a space

Functions

Variables

Detailed Description

Function Documentation

◆ AboutHandler()

◆ FactoryResetHandler()

◆ HexToUInt()

◆ ParseCommandArgs()

◆ ReadBufHandler()

◆ ReadHandler()

◆ RegAliasReadHandler()

◆ Script_Check_Stream()

◆ Script_Parse_Element()

◆ Script_Run_Element()

◆ StreamCmdHandler()

◆ StringEquals()

◆ UptimeHandler()

◆ UShortToHex()

◆ WriteHandler()

Variable Documentation

◆ AboutCmd

◆ BufA

◆ cmdIndex

◆ CntCmd

◆ CommandCmd

◆ DelimCmd

◆ EchoCmd

◆ EndloopCmd

◆ FactoryResetCmd

◆ goodArg

◆ HelpCmd

◆ HelpStr

◆ InvalidArgStr

◆ InvalidCmdStr

◆ LoopCmd

◆ NotAllowedStr

◆ ReadBufCmd

◆ ReadCmd

◆ SleepCmd

◆ StatusCmd

◆ StreamBuf_A

◆ StreamBuf_B

◆ StreamCmd

◆ UnknownErrorStr

◆ UptimeCmd

◆ WriteCmd
