Header file for iSensor-SPI-Buffer register interfacing module. More...

#include <stdint.h>
#include "main.h"

Include dependency graph for reg.h:

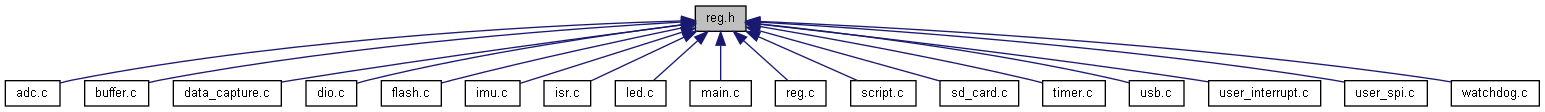

This graph shows which files directly or indirectly include this file:

Macros
#define	REG_PER_PAGE 64

#define	NUM_REG_PAGES 4

#define	PAGE_ID 0

#define	OUTPUT_PAGE 252

#define	BUF_CONFIG_PAGE 253

#define	BUF_CONFIG_REG 0x41

#define	BUF_LEN_REG 0x42

#define	BTN_CONFIG_REG 0x43

#define	DIO_INPUT_CONFIG_REG 0x44

#define	DIO_OUTPUT_CONFIG_REG 0x45

#define	WATERMARK_INT_CONFIG_REG 0x46

#define	ERROR_INT_CONFIG_REG 0x47

#define	IMU_SPI_CONFIG_REG 0x48

#define	USER_SPI_CONFIG_REG 0x49

#define	CLI_CONFIG_REG 0x4A

#define	USER_COMMAND_REG 0x4B /* Clears automatically */

#define	SYNC_FREQ_REG 0x4C

#define	USER_SCR_0_REG 0x5A

#define	USER_SCR_3_REG 0x5D

#define	UTC_TIMESTAMP_LWR_REG 0x5E

#define	UTC_TIMESTAMP_UPR_REG 0x5F

#define	STATUS_0_REG 0x60

#define	FAULT_CODE_REG 0x61

#define	BUF_CNT_0_REG 0x62

#define	BUF_MAX_CNT_REG 0x63

#define	TIMESTAMP_LWR_REG 0x65

#define	TIMESTAMP_UPR_REG 0x66

#define	TEMP_REG 0x67

#define	VDD_REG 0x68

#define	SCR_LINE_REG 0x72

#define	SCR_ERROR_REG 0x73

#define	ENDURANCE_REG 0x76

#define	FW_REV_REG 0x77

#define	FW_DAY_MONTH_REG 0x78

#define	FW_YEAR_REG 0x79

#define	DEV_SN_REG 0x7A

#define	BUF_WRITE_PAGE 254

#define	BUF_WRITE_0_REG 0x89

#define	FLASH_SIG_DRV_REG 0xBE

#define	FLASH_SIG_REG 0xBF

#define	BUF_READ_PAGE 255

#define	STATUS_1_REG 0xC1

#define	BUF_CNT_1_REG 0xC2

#define	BUF_RETRIEVE_REG 0xC3

#define	BUF_UTC_TIMESTAMP_REG 0xC4

#define	BUF_US_TIMESTAMP_REG 0xC6

#define	BUF_SIG_REG 0xC8

#define	BUF_DATA_0_REG 0xC9

#define	FW_REV_DEFAULT 0x0115

#define	BUF_CONFIG_DEFAULT 0x0000

#define	BUF_LEN_DEFAULT 0x0014

#define	DIO_INPUT_CONFIG_DEFAULT 0x0011

#define	DIO_OUTPUT_CONFIG_DEFAULT 0x8421

#define	WATER_INT_CONFIG_DEFAULT 0x0020

#define	ERROR_INT_CONFIG_DEFAULT 0xFFFC

#define	IMU_SPI_CONFIG_DEFAULT 0x100F

#define	USER_SPI_CONFIG_DEFAULT 0x0007

#define	CLI_CONFIG_DEFAULT 0x2000

#define	BTN_CONFIG_DEFAULT 0x8000

#define	SYNC_FREQ_DEFAULT 2000

#define	FLASH_SIG_DEFAULT 0x9D2A

#define	DIO_OUTPUT_CONFIG_FLAG (1 << 0)

#define	IMU_SPI_CONFIG_FLAG (1 << 1)

#define	USER_SPI_CONFIG_FLAG (1 << 2)

#define	USER_COMMAND_FLAG (1 << 3)

#define	DIO_INPUT_CONFIG_FLAG (1 << 4)

#define	ENABLE_CAPTURE_FLAG (1 << 5)

#define	DEQUEUE_BUF_FLAG (1 << 6)

#define	DISABLE_CAPTURE_FLAG (1 << 7)

#define	CMD_CLEAR_BUFFER (1 << 0)

#define	CMD_CLEAR_FAULT (1 << 1)

#define	CMD_FACTORY_RESET (1 << 2)

#define	CMD_FLASH_UPDATE (1 << 3)

#define	CMD_PPS_ENABLE (1 << 4)

#define	CMD_PPS_DISABLE (1 << 5)

#define	CMD_START_SCRIPT (1 << 6)

#define	CMD_STOP_SCRIPT (1 << 7)

#define	CMD_WATERMARK_SET (1 << 8)

#define	CMD_SYNC_GEN (1 << 9)

#define	CMD_BOOTLOADER (1 << 13)

#define	CMD_IMU_RESET (1 << 14)

#define	CMD_SOFTWARE_RESET (1 << 15)

#define	SPI_CONF_CPHA (1 << 0)

#define	SPI_CONF_CPOL (1 << 1)

#define	SPI_CONF_MSB_FIRST (1 << 2)

#define	SPI_CONF_MASK (SPI_CONF_CPHA\|SPI_CONF_CPOL\|SPI_CONF_MSB_FIRST)

#define	STATUS_BUF_WATERMARK (1 << 0)

#define	STATUS_BUF_FULL (1 << 1)

#define	STATUS_SPI_ERROR (1 << 2)

#define	STATUS_SPI_OVERFLOW (1 << 3)

#define	STATUS_OVERRUN (1 << 4)

#define	STATUS_DMA_ERROR (1 << 5)

#define	STATUS_PPS_UNLOCK (1 << 6)

#define	STATUS_TEMP_WARNING (1 << 7)

#define	STATUS_SCR_ERROR (1 << 10)

#define	STATUS_SCR_RUNNING (1 << 11)

#define	STATUS_FLASH_ERROR (1 << 12)

#define	STATUS_FLASH_UPDATE (1 << 13)

#define	STATUS_FAULT (1 << 14)

#define	STATUS_WATCHDOG (1 << 15)

#define	STATUS_CLEAR_MASK (STATUS_FLASH_ERROR\|STATUS_FAULT\|STATUS_FLASH_UPDATE\|STATUS_WATCHDOG\|STATUS_SCR_RUNNING)

#define	BUF_CFG_REPLACE_OLDEST (1 << 0)

#define	BUF_CFG_IMU_BURST (1 << 1)

#define	BUF_CFG_BUF_BURST (1 << 2)

#define	BUF_CFG_MASK (BUF_CFG_REPLACE_OLDEST\|BUF_CFG_IMU_BURST\|BUF_CFG_BUF_BURST)

#define	WATERMARK_PULSE_MASK (1 << 15)

#define	USB_STREAM_BITP 0

#define	SD_STREAM_BITP 1

#define	USB_ECHO_BITP 2

#define	SD_AUTORUN_BITP 3

#define	CLI_DELIM_BITP 8

#define	USB_STREAM_BITM (1 << USB_STREAM_BITP)

#define	SD_STREAM_BITM (1 << SD_STREAM_BITP)

#define	USB_ECHO_BITM (1 << USB_ECHO_BITP)

#define	SD_AUTORUN_BITM (1 << SD_AUTORUN_BITP)

#define	CLI_DELIM_BITM (0xFF << CLI_DELIM_BITP)

#define	CLI_CONFIG_CLEAR_MASK 0xFF0C

Variables
volatile uint32_t	g_update_flags

volatile uint16_t	g_regs [NUM_REG_PAGES *REG_PER_PAGE]

volatile uint16_t *	g_CurrentBufEntry

Detailed Description

Header file for iSensor-SPI-Buffer register interfacing module.

Date: 3/18/2020

Author: A. Nolan (alex..nosp@m.nola.nosp@m.n@ana.nosp@m.log..nosp@m.com)

Macro Definition Documentation

◆ BUF_CONFIG_PAGE

#define BUF_CONFIG_PAGE 253

iSensor-SPI-Buffer config settings page

◆ BUF_READ_PAGE

#define BUF_READ_PAGE 255

iSensor-SPI-Buffer buffer Rx data page

◆ BUF_WRITE_PAGE

#define BUF_WRITE_PAGE 254

iSensor-SPI-Buffer buffer Tx data page

◆ NUM_REG_PAGES

#define NUM_REG_PAGES 4

Number of pages

◆ OUTPUT_PAGE

#define OUTPUT_PAGE 252

Output page used for storing volatile data

◆ PAGE_ID

#define PAGE_ID 0

Page register (0 for all pages)

Variable Documentation

◆ g_CurrentBufEntry

volatile uint16_t* g_CurrentBufEntry

extern

Pointer to buffer entry. Will be 0 if no buffer entry "loaded" to output registers

◆ g_update_flags

volatile uint32_t g_update_flags
